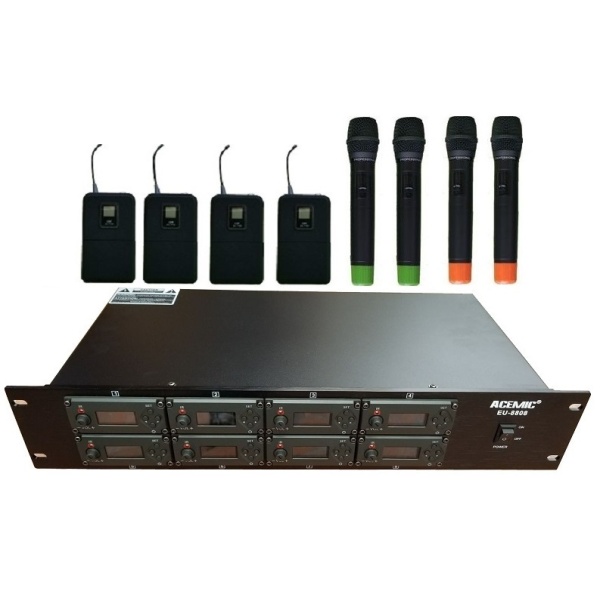

FEATURES CONREFANCE SYSTEM 8 UHF 740-790MHz frequency range PLL Synthesized circuit Four channels; Pre-set 100*4 selectable frequencies Adopt individual module, each one can be turned off and removed Download the frequency from receiver by IR Sync LCD status of frequency, AF and RF signal etc EIA standard 1U rack-mountable metal chassis Ideal for small conference rooms Optional hand-held microphone, pocket transmitter, lavalier and headset available SPECIFICATION Comprehensive Performance Carrier Frequency: UH600-900MHz Frequency Stabilization: <30ppm Dynamic Range: >100dB Total Harmonic Distortion: <0.8% Frequency Response: 40Hz~15KHz3dB Audio Output Level: Balance 400mV Unbalance: 300mV Receiver Power Supply: DC 12V-17V Consume Power: 1 WATT Signal/Noise Ratio: >105dB Image &Spurious Rejection: >80dB Border Upon Channel Rejection: >80dB Receiving Sensitivity: 5dBuV (sinad>20dB) De-Emphasis: 50uS Transmitter Transmitter Power: 10~30mW Modulation Type: FM Deviation: 20KHz Spurious Emission: >40dB Battery Voltage: 3V (2x1.5V AA Battery) Continuous Using: 5 hours
