- Konnektör Şekli
- : Çivi
- Konnektör Tipi
- : BNC

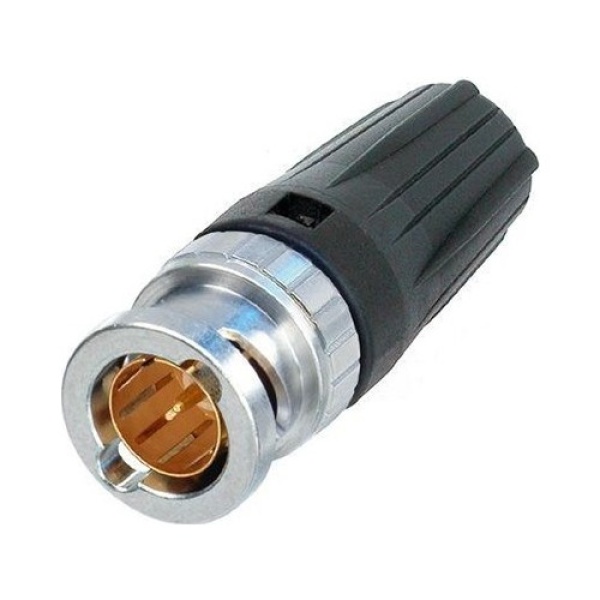

Neutrik NBNC75BLP9 - BNC Kablo Konnektörü
The rearTWIST BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Argosy Image 720, Belden 1505A (ANH), Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F)
Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)
Features :
- rearTWIST Principle locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the head of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
